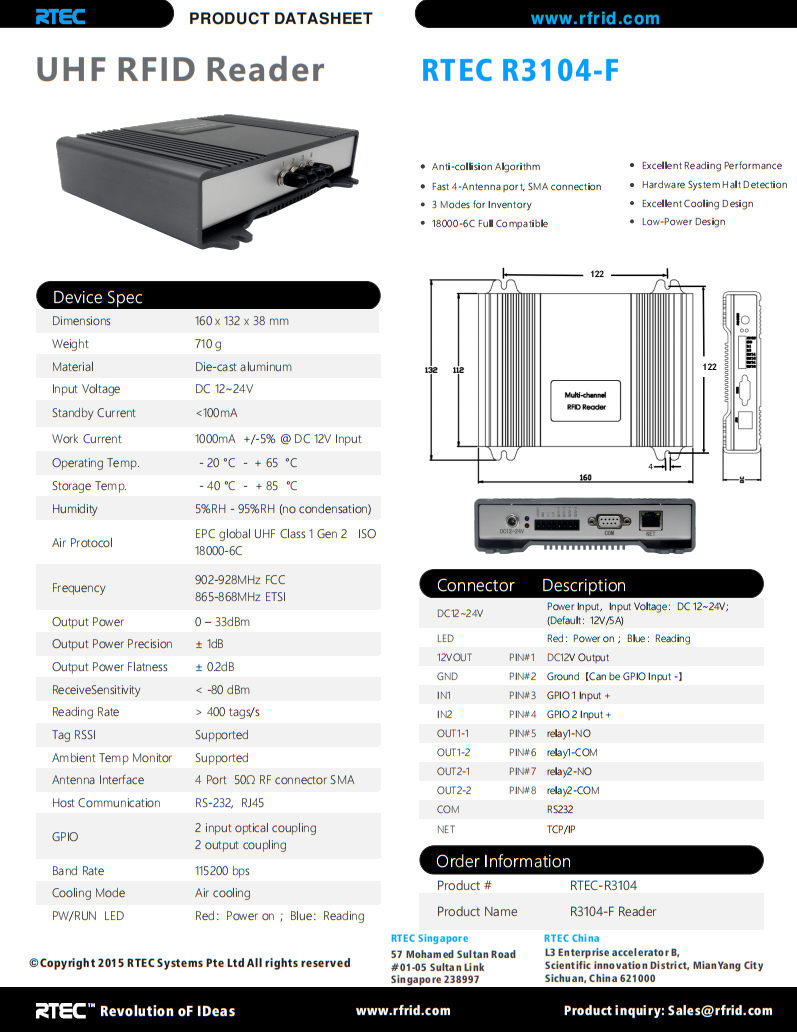

R3104-F is a high-performance UHF read/write module developed with great concentration, the maximum output power can reach +33dBm, with 4-port 50Ω RF connector SMA antenna interface, RS-232, TCP/IP communication interface, The tag recognition rate greater than 400tags/s can be achieved. This module is a high-performance UHF RFID read-write module specially designed for highly challenging RFID application environments, which can provide customers with unprecedented read-write performance in the industry. It is suitable for warehousing, logistics, clothing, production line management and other application environments that require high RFID intensive reading performance and are more challenging.
Die-cast aluminum
160 x 132 x 38 mm
- 40 °C - + 85 °C
902-928MHz FCC
865-868MHz ETS
EPC global UHF Class 1 Gen 2 ISO 18000-6C
0 – 33dBm
> 400 tags/s
Supported
RS-232, RJ45
2 input optical coupling 2 output coupling
